Service kit for single models 1st stage – List of parts

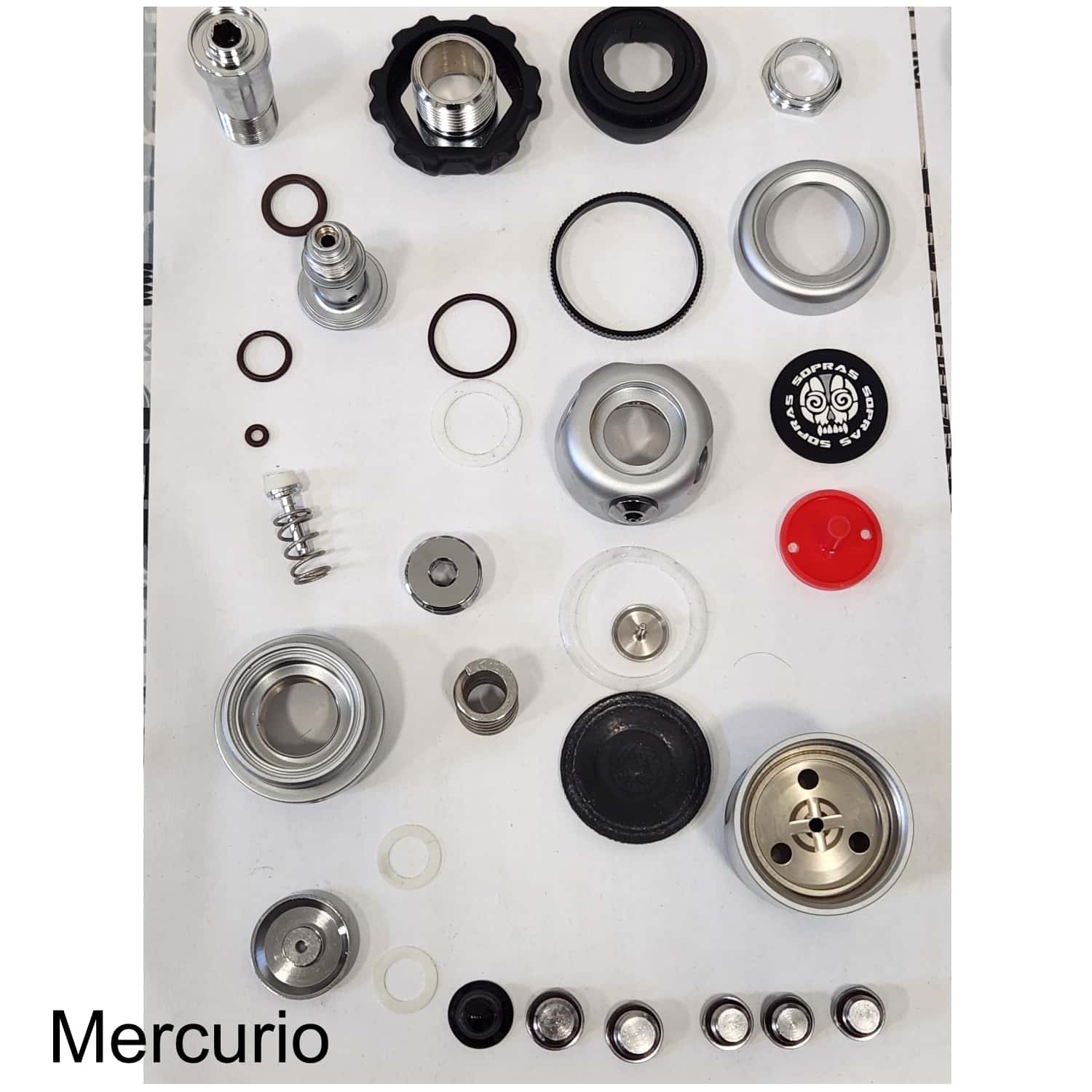

Mercurio DIN (Yoke also available #ND000042)
| 0113 | FILTER | 1 |
| 2-011-04 | O-RING VITON | 1 |
| 0206 | DIAPHRAGM | 1 |
| 0207 | TEFLON WASHER | 1 |
| 2-024-03 | O-RING VITON | 1 |
| 2-019-03 | O-RING VITON | 1 |
| 0213 | HP SEAT | 1 |
| 2-006-04 | O-RING VITON | 1 |
| 2-013-04 | O-RING VITON | 1 |
| 3-904-03 | O-RING VITON | 2 |
| 3-903-03 | O-RING VITON | 4 |
| 2-012-04 | O-RING VITON (D) | 1 |
| 2-112-04 | O-RING VITON | 1 |

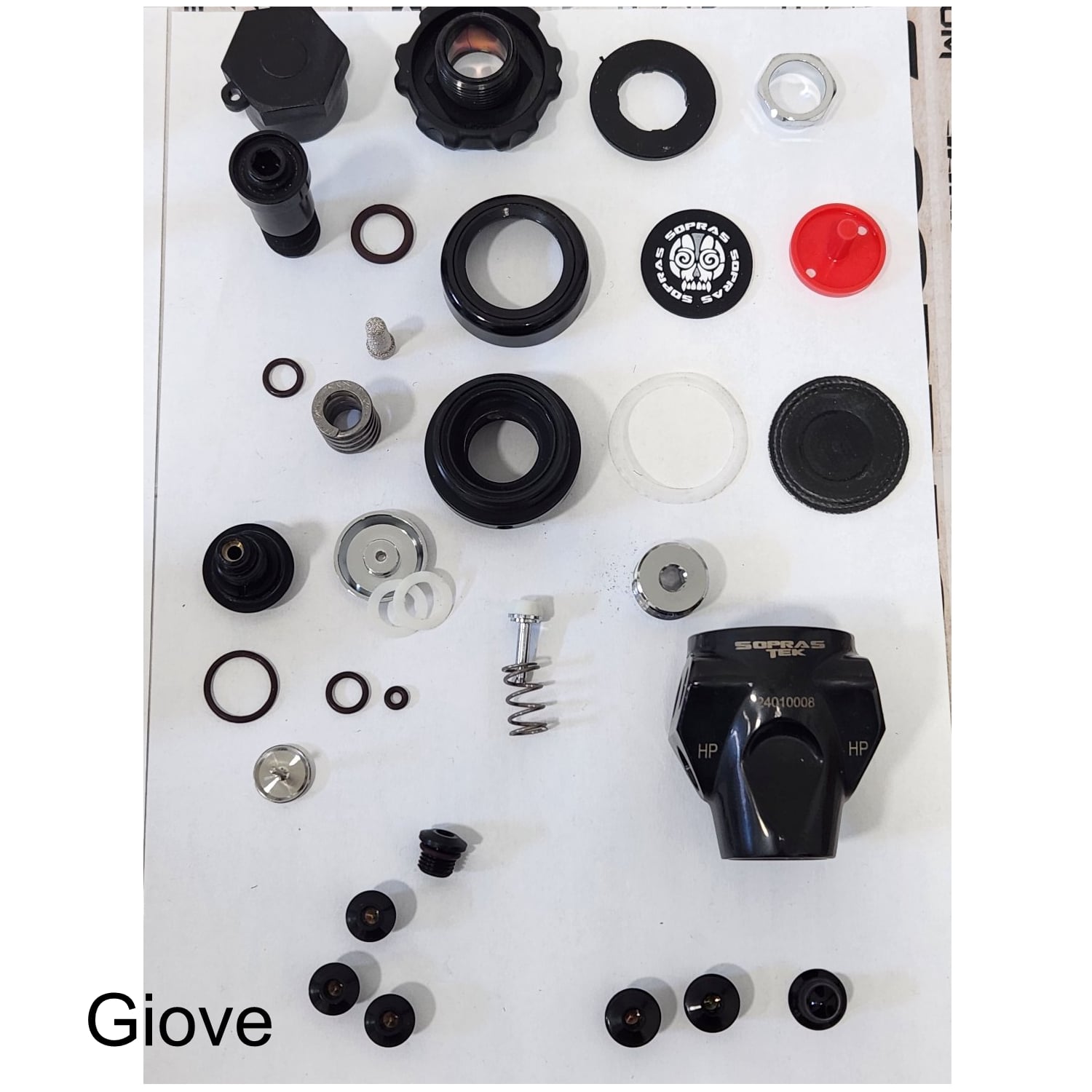

Giove DIN (Yoke also available #ND000040)
| 0113 | FILTER | 1 |
| 2-011-04 | O-RING VITON | 2 |
| 0206 | DIAPHRAGM | 1 |
| 0207 | DIAPHRAGM WASHER | 1 |
| 0213 | HP SEAT | 1 |
| 2-006-04 | O-RING VITON | 1 |
| 2-016-03 | O-RING VITON | 1 |
| 3-904-03 | O-RING VITON | 2 |
| 3-903-03 | O-RING VITON | 4 |
| 2-012-04 | O-RING VITON (D) | 1 |
| 2-112-04 | O-RING VITON (D) | 1 |

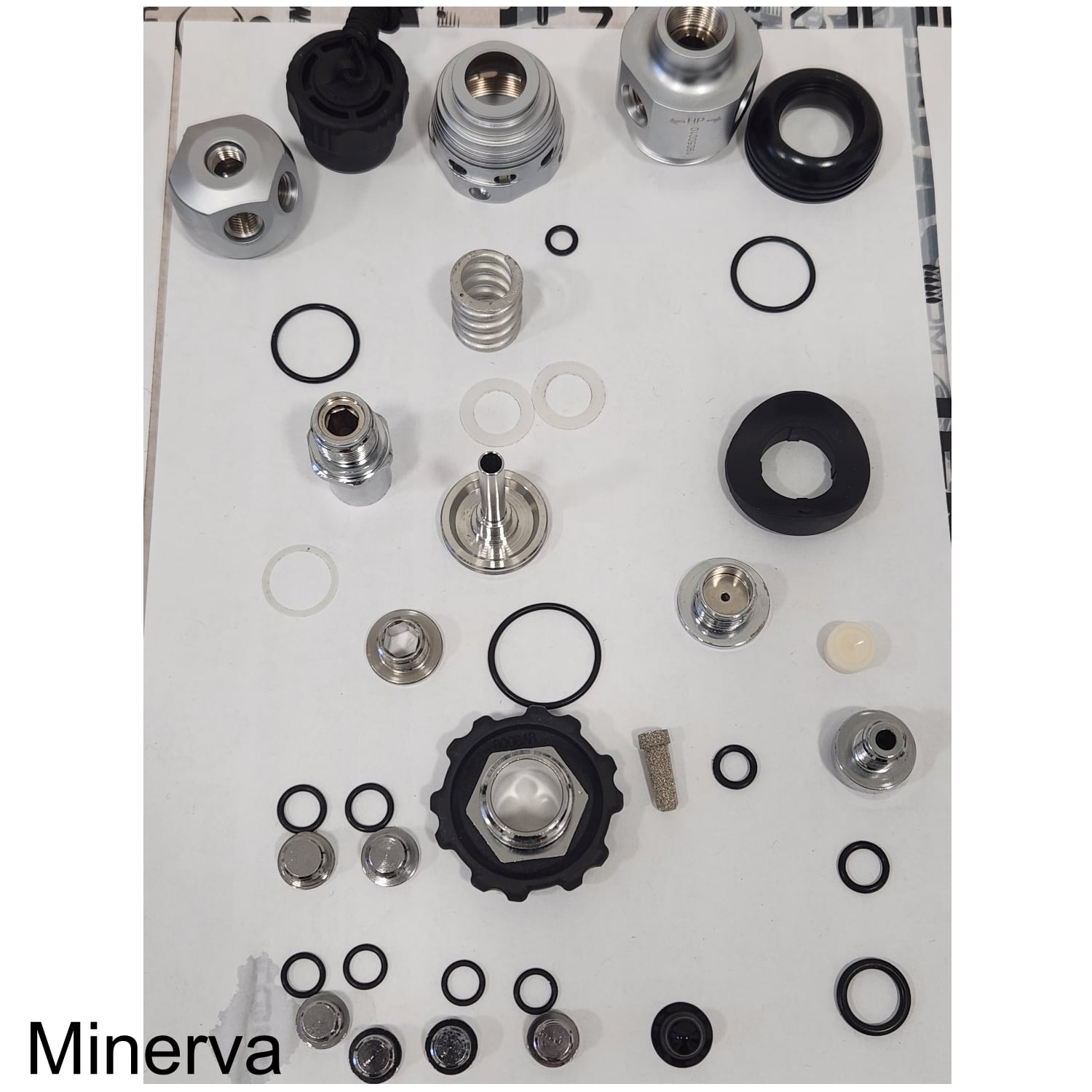

Minerva DIN (Yoke also available #ND000025)
| 0113 | FILTER | 1 |
| 2-011-02 | 011 O-RING N90 | 1 |
| 2-010-02 | 010 O-RING N90 | 1 |
| 2-022-01 | 022 O-RING N70 | 1 |
| 2-019-01 | 019 O-RING N70 | 1 |
| 3-903-01 | 903 O-RING N70 | 4 |
| 3-904-01 | 904 O-RING N70 | 2 |
| 2-014-02 | 014 O-RING N90 | 1 |
| 0140 | HP SEAT | 1 |
| 2-012-02 | 012 O-RING N90 | 1 |
| 2-112-02 | 112 O-RING N90 | 1 |
| 2-019-01 | 019 O-RING N70 | 1 |

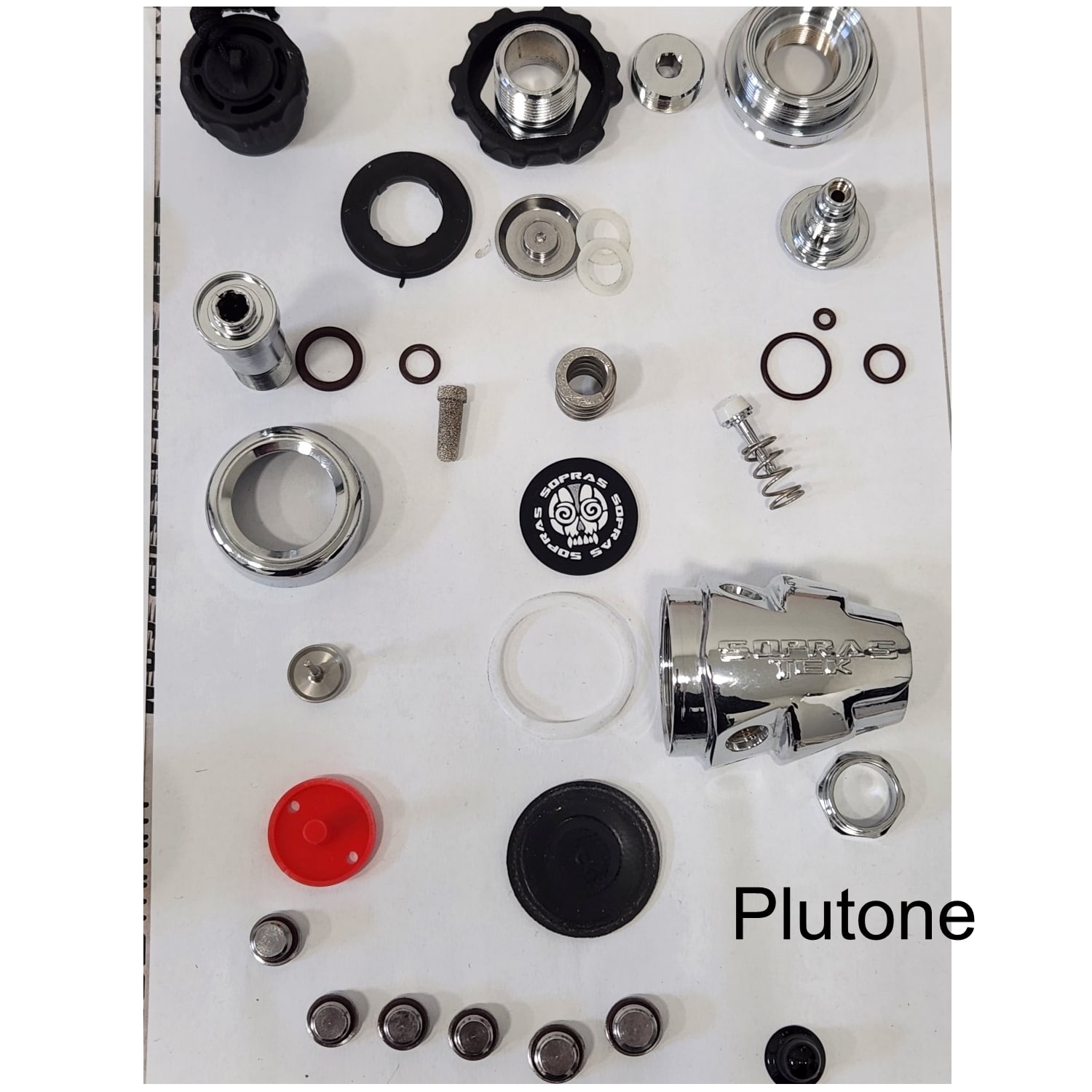

Plutone DIN (Yoke also available #ND000031)
| 0113 | FILTER | 1 |
| 2-011-04 | O-RING VITON | 3 |
| 0206 | DIAPHRAGM | 1 |
| 0207 | DIAPHRAGM WASHER | 1 |
| 0213 | HP SEAT | 1 |
| 2-006-04 | O-RING VITON | 1 |
| 2-016-03 | O-RING VITON | 1 |
| 3-904-03 | O-RING VITON | 2 |
| 3-903-03 | O-RING VITON | 4 |
| 2-012-04 | O-RING VITON(D) | 1 |

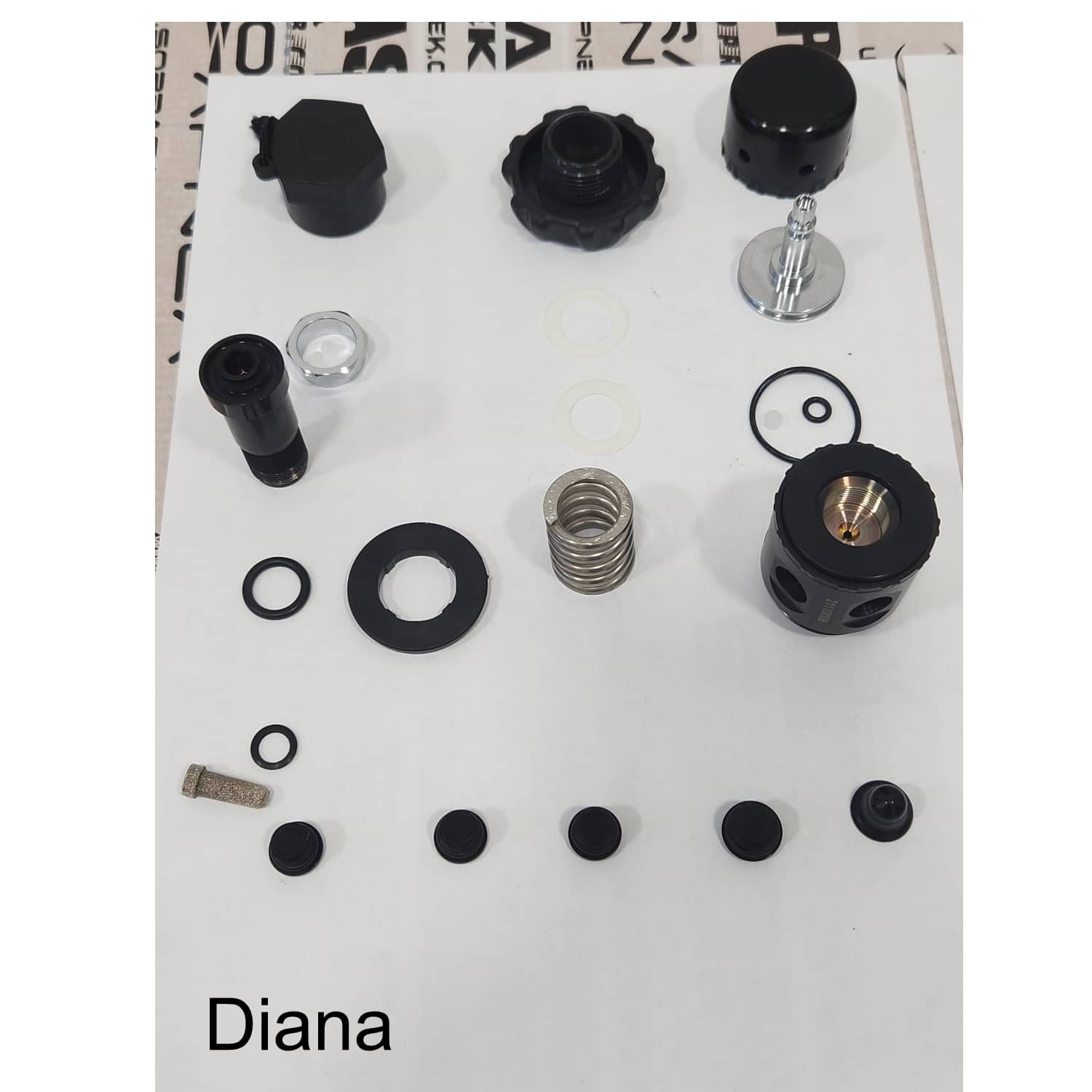

Diana DIN (Yoke also available #ND000036)
| 0113 | FILTER | 1 |
| 2-011-02 | O-RING | 1 |
| 0104 | HP SEAT | 1 |
| 2-008-01 | O-RING | 1 |
| 2-023-01 | O-RING | 1 |
| 3-903-01 | O-RING | 3 |
| 3-904-01 | O-RING | 1 |
| 2-012-02 | O-RING | 1 |
| 2-112-02 | O-RING | 1 |
Oxy Regulator DIN (Diana DIN Viton) #NDND000050
| 0113 | FILTER | 1 |
| 2-011-04 | Viton O-RING | 1 |
| 104 | HP SEAT | 1 |
| 2-008-03 | Viton O-RING | 1 |
| 2-023-03 | Viton O-RING | 1 |
| 3-903-03 | Viton O-RING | 3 |
| 3-904-03 | Viton O-RING | 2 |
| 2-012-04 | Viton O-RING | 1 |
| 2-112-04 | Viton O-RING | 1 |
*Please note that the service kits do not include all parts of the regulator as in the picture of the given first stage. Only the parts that we recommend changing yearly are included
